Free Revit elevator families

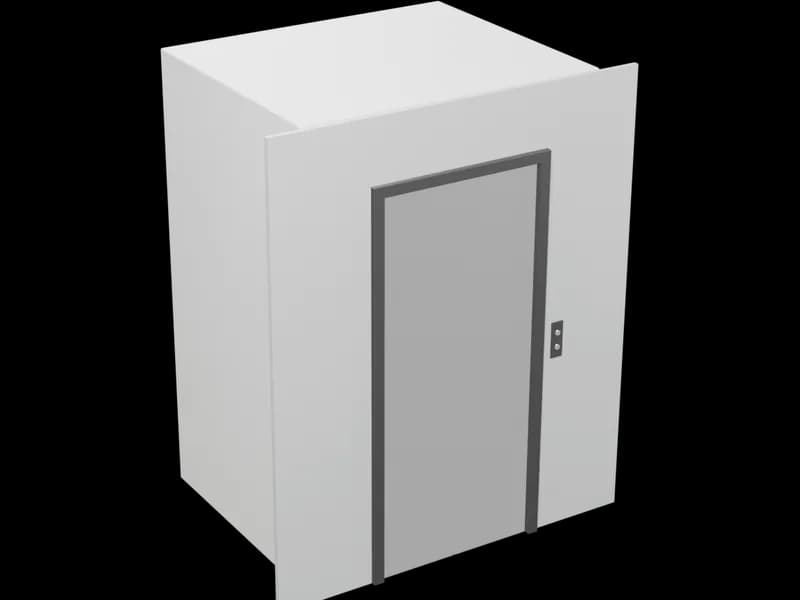

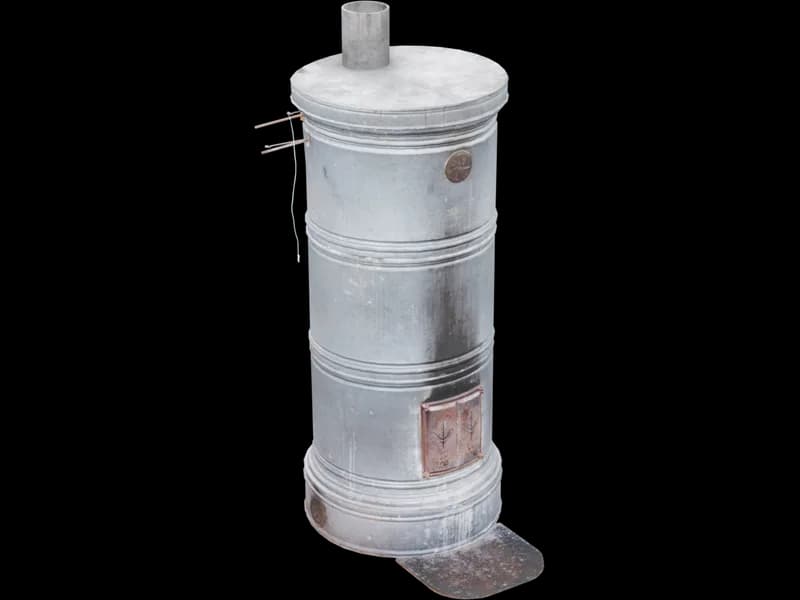

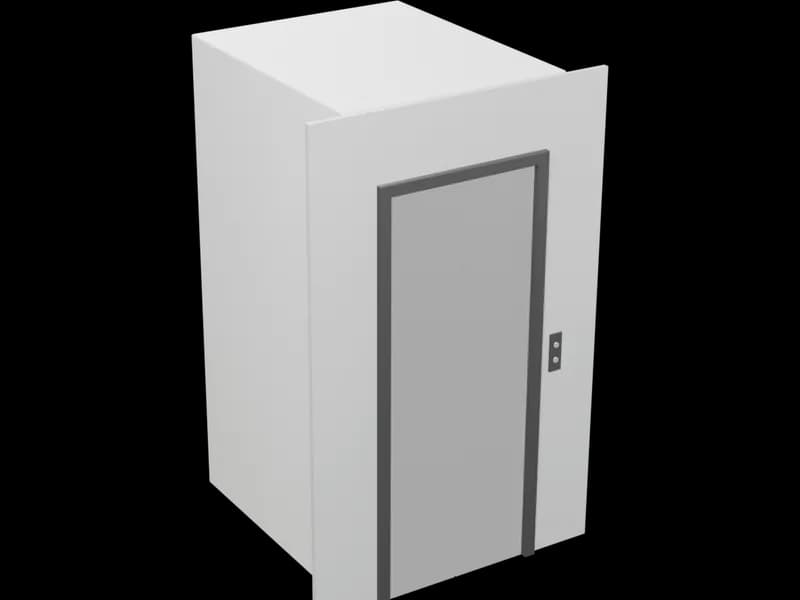

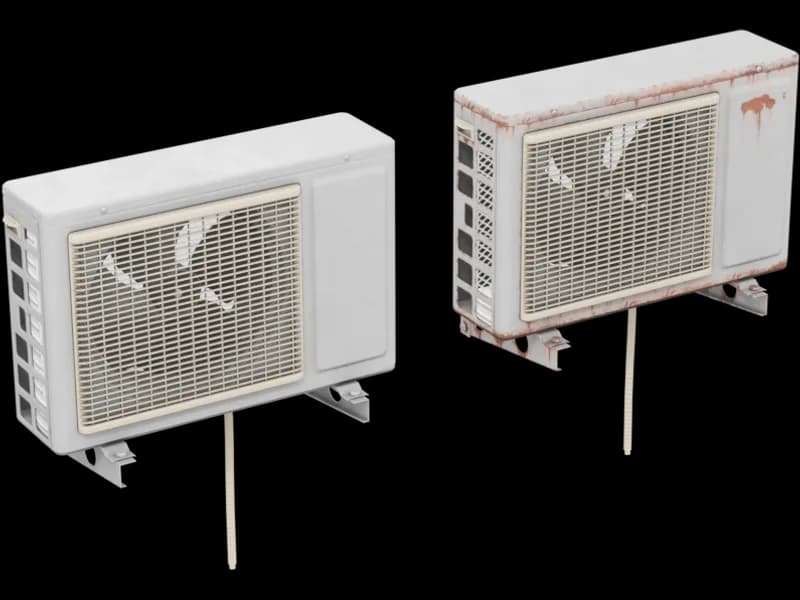

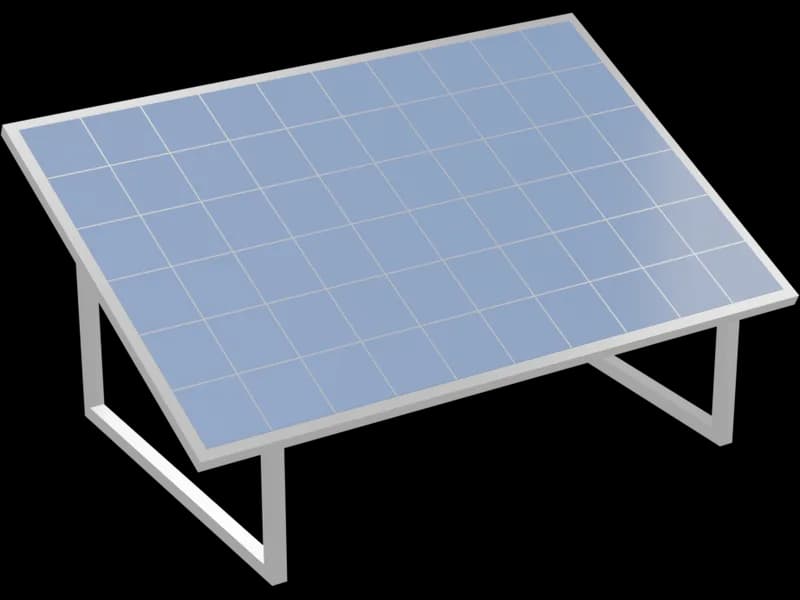

Passenger elevators for 8 people (630 kg, 1,100 × 1,400 mm car) and 13 people (1,000 kg, 1,600 × 1,400 mm car) with landing doors and a call panel, plus a solar panel on a tilt frame, an outdoor air conditioning unit and a masonry heater.
- models
- 5
- formats
- IFC, FBX, OBJ, GLB
- triangles
- ≤ 20K
Which file For which tool
In Revit, take the IFC and link it. The rest are the same model for the tools around Revit, so the architect and the render artist place the identical object.
IFC
Revit, Archicad, Vectorworks, Bonsai
Revit: Insert › Link IFC. Doors and windows are IfcDoor and IfcWindow, furniture IfcFurniture, with size and source as properties.
FBX
3ds Max, Twinmotion, Lumion, Unreal
Textures embedded.
OBJ
SketchUp, Rhino, Blender
Zipped with its .mtl and textures.
GLB
Enscape, Blender, web viewers
One self-contained file.
Questions About these elevators
Are the elevator sizes real?
The cars follow the ISO 4190-1 passenger car sizes for 630 kg and 1,000 kg. The shaft, pit and overrun depend on the manufacturer, so take final dimensions from the supplier's drawings before you fix the core.
Can I use them in Revit?
In Revit, Insert, then Link IFC places it at its real size; File, Open, IFC opens it on its own. FBX, OBJ and GLB are the same model for 3ds Max, SketchUp, Rhino, Enscape and Twinmotion.
More free Revit families: doors · windows · kitchen · bathroom · sofas · chairs · tables · beds · storage · office · lighting · outdoor · plants · the whole library
